Details
Sliding Table Saw
Precise. Powerful. Potential -- MJ61-32TAZ sliding table saw.
• Saw motor: 5.5kw+1.1kw
• Maximum cutting length: 3200 mm
• Main saw blade Up&down electric control.
Relying on quality is always a best choice!
Description
Features:
If you want to select sliding table saw in your first workshop, or if you need a compact second machine, even when large quantities and maximum productivity are important in industrial production --- this MJ61-32TAZ is your reliable machine for all cases.
Technical parameter:
Dimension of sliding table | 3200*410mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(250-350mm) |
Height of cut(300mm) | 90mm |
Height of cut with saw blade 300mm at 45° | 60mm |
Tilting saw blade | 0-45° |
Main motor | 5.5kw |
Scoring motor | 1.1kw |
Speed of scoring saw blade | 7000-8000rpm |
Scoring saw blade diameter | 120mm |
Main spindle diameter | 30mm |
Scoring spindle diameter | 20mm |
Gross weight | 950kg |
Overall dimension | 3150*3150*900mm |
Products description:
1. Sawing system: linear guide structure
Perfect inner structure, linear guide way to make sure the machine's working precision and easy-operation.

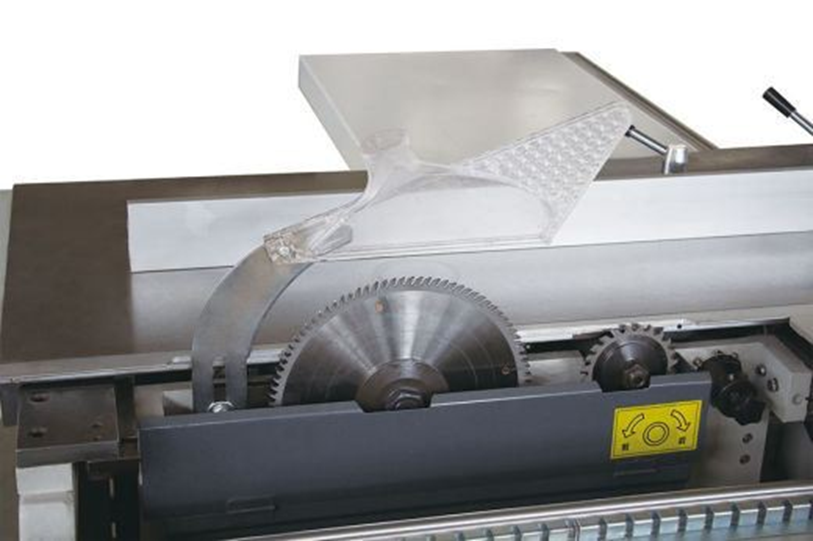

2. Automatic power off saw blade cover added the working safety.

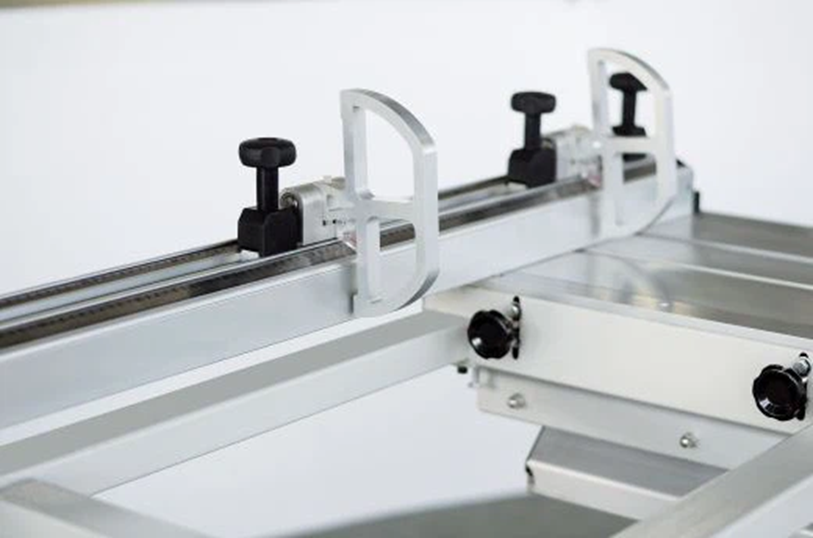

3. Aluminum extruded fence with large stopper and sliding table saw big ruler made of aluminum ensure cutting precision, enlarge baffle plate for strength saving, and flexibly push the plate.
4. Steel bar Altendorf type sliding table is 3200 mm length*410mm width, with inner lock, which make it more rigidity and strength, and has smooth movement.

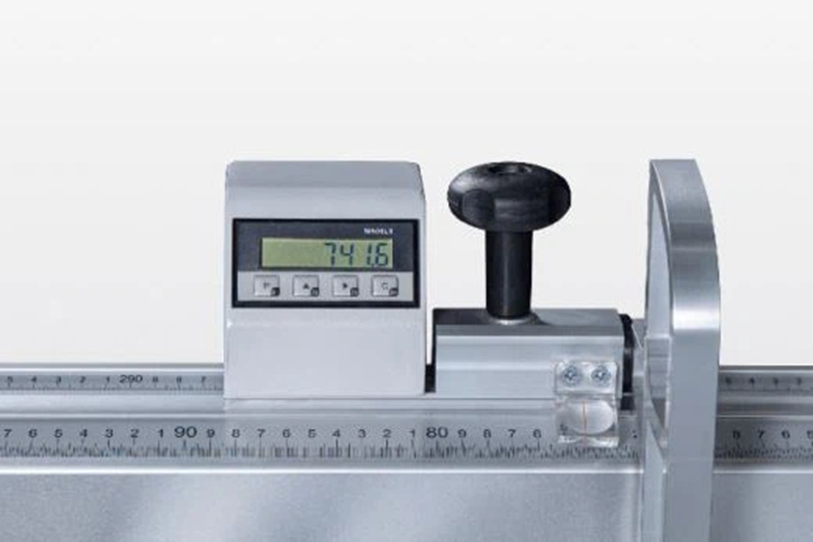

5. Digital display horizontal ruler
The adjustment accuracy can reach 0.1mm, and the cutting size is more accurate.

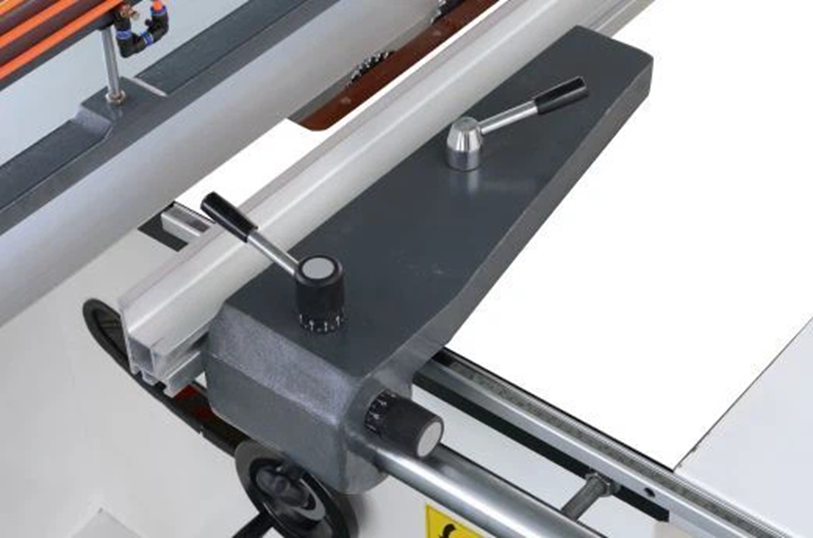

6. Rip fence fine micro adjustment, stable and precision.
The stop is easy to adjust, and thanks to the fine adjustment, it can be adjusted very precisely by hand. If large panels are to be divided up, the stop can be swiveled under the table level with one handle.
As with our sliding table saw, we also place the highest demands on our service. No matter what your concern is, our service team is at your side quickly, who are competent and reliab. Hand on it!
Why choose us?
• Our Table Panel Saw products are made with precision and attention to detail for maximum performance.
• As a professional manufacturer and exporter, we can offer you a widely range of products with efficient customer service.
• Our Table Panel Saw products are designed to be user-friendly and easy to operate.
• We insist on the quality concept of relying on science and technology, building high-quality products, talking about integrity and creating first-class.
• Our team is committed to collaborating with our customers to meet their unique Table Panel Saw product requirements.
• We closely unite the talent team, realize the staff's ideological identity, emotional identity and cultural identity, and work together with the enterprise for common development.
• Our experienced team ensures that each Table Panel Saw product is made to the highest quality standards.
• The company has established a running mechanism and corporate governance structure to adapt to the development of the modern market economy, with reasonable management levels, institutional settings, and sound and perfect management systems.
• Our Table Panel Saw products are customizable to meet unique customer requirements.
• Our company has advanced production equipment to create value and provide Sliding Table Saw with more potential and quality. We are willing to listen to customers' insights, opinions, and needs, and jointly create more cost-effective product solutions for customers. We regard customers as partners in co-creation and always put customers at the forefront and the most important position.
