CNC Panel Saw Machine
Computer control CNC panel saw machine with 3200mm length max cutting capacity Heavy dust structure, high precision liners guide way.
Description
Main structural technology:
-- Select high-quality Shaogang as raw material, adopt advanced CO2 gas shielded welding process, and use 28mm integral board for the table.
--Fixed on the left and right frame beams to ensure excellent balance performance and straightness. The movement of independent main saw and scoring saw can automatically adjust the cutting height according to the cutting thickness.
-- The support rod adopts a closed inner frame structure, which more effectively ensures the stability of the main body and the service life of the whole machine.
-- One month after the frame is welded, one month after the frame is welded, then heat treatment is performed to eliminate the residual stress during processing, and the crystal structure changes phases to enhance the stability of the main body.
-- After 3 months of aging treatment, then sent to the machining center for precision machining.
Technical parameter:
Model | DZ-3300 |
Control system | PC with cutting optimization software |
Max. cutting size | 3300mm |
Max. cutting thickness | 120mm |
Saw carrier backward speed | 120m/min |
Main saw blade diameter | Φ450*75mm |
Main saw motor power | 15kw |
Scoring saw motor power | 2.2kw |
Pneumatic holding gripers | 10 groups |
Driving motor power | 1.8kw |
Working pressure | 6-7kg/cm² |
Net weight | 5800KG |
Overall size | 6600*6400*1800mm |

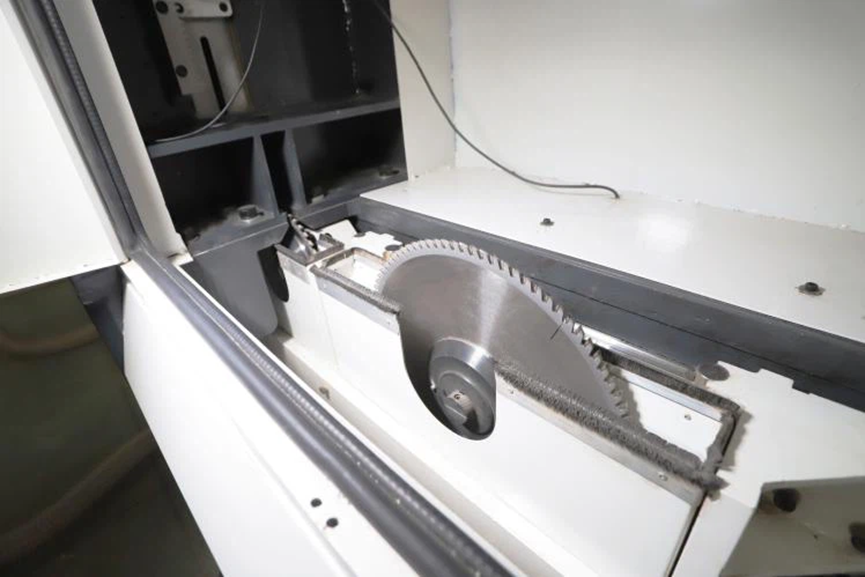

Sawing system:
The two saw blades are installed vertically to ensure the cutting accuracy of this CNC panel saw machine;
the nut locking device is convenient for installation without adjustment, sawing ensures precision and no chipping.

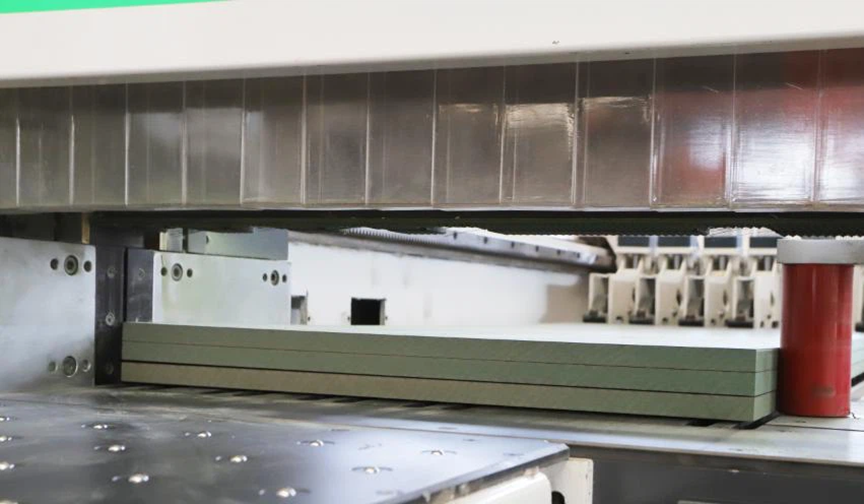

This CNC panel saw machine equips with 10 sets of grippers, can ensure the wood panels processing movements easily.
Side aligning device is included, convenient when need to cutting small boards.
Why choose us?
• We are committed to maintaining sustainable manufacturing practices to produce environmentally-friendly Table Panel Saw products.
• We decided to upgrade the core technology of our CNC Panel Saw Machine on our own to achieve self-sufficiency in the industry chain.
• We strive to maintain superior customer service by offering prompt assistance with all Table Panel Saw product inquiries and concerns.
• Our strong market competitiveness comes from the strong comprehensive strength of enterprises. At present, our marketing outlets are all over the country, and the professional service team provides 'whole process worry free service' for customers.
• We are committed to delivering Table Panel Saw products of exceptional quality while maintaining competitive prices.
• In an ever-changing marketplace, we continue to make new advances every year by offering the best CNC Panel Saw Machine to people.
• As a manufacturer and supplier of Table Panel Saw products, we offer competitive prices without compromising quality.
• We bring together domestic first-class scientific research, technology, and management elites, and have advanced production and scientific research and test equipment.
• Our Table Panel Saw products are designed with ergonomics in mind to reduce user fatigue and improve efficiency.
• We effectively implement the "strict and demanding spirit, the path of learning and innovation, and the goal of creating the first-class".
