Panel Saw Machine
MJ61-16TD-- Concentrated quality. Compact 1600mm capacity saw.
Description
Panel saw machine features:
Advanced compact 1600mm model offered is basic on features, and heavy on quality and reliability. This saw is designed to be an economic solution for the small shop yet includes the same high-end construction features available on our most expensive models.
Technical info:
Worktable size | 1600*375mm |
Capacity of cross cut ruler | 1600mm |
Capacity of rip fence | 1250mm |
Sawing disc capacity | 300(250-400)mm |
Thickness of cutting (300mm) | 75mm |
Thickness of cutting of 300mm at 45 degree | 55mm |
Main saw disc speed | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main saw unit motor | 5.5kw |
Scoring cutting unit | 120mm |
Scoring disc speed | 7000-8000rpm/min |
Scoring unit spindle | 20mm |
Scoring saw unit motor | 1.1kw |
G.W. | 750kg |
Packing size | 1520*1150*1050mm 1750*480*320mm |

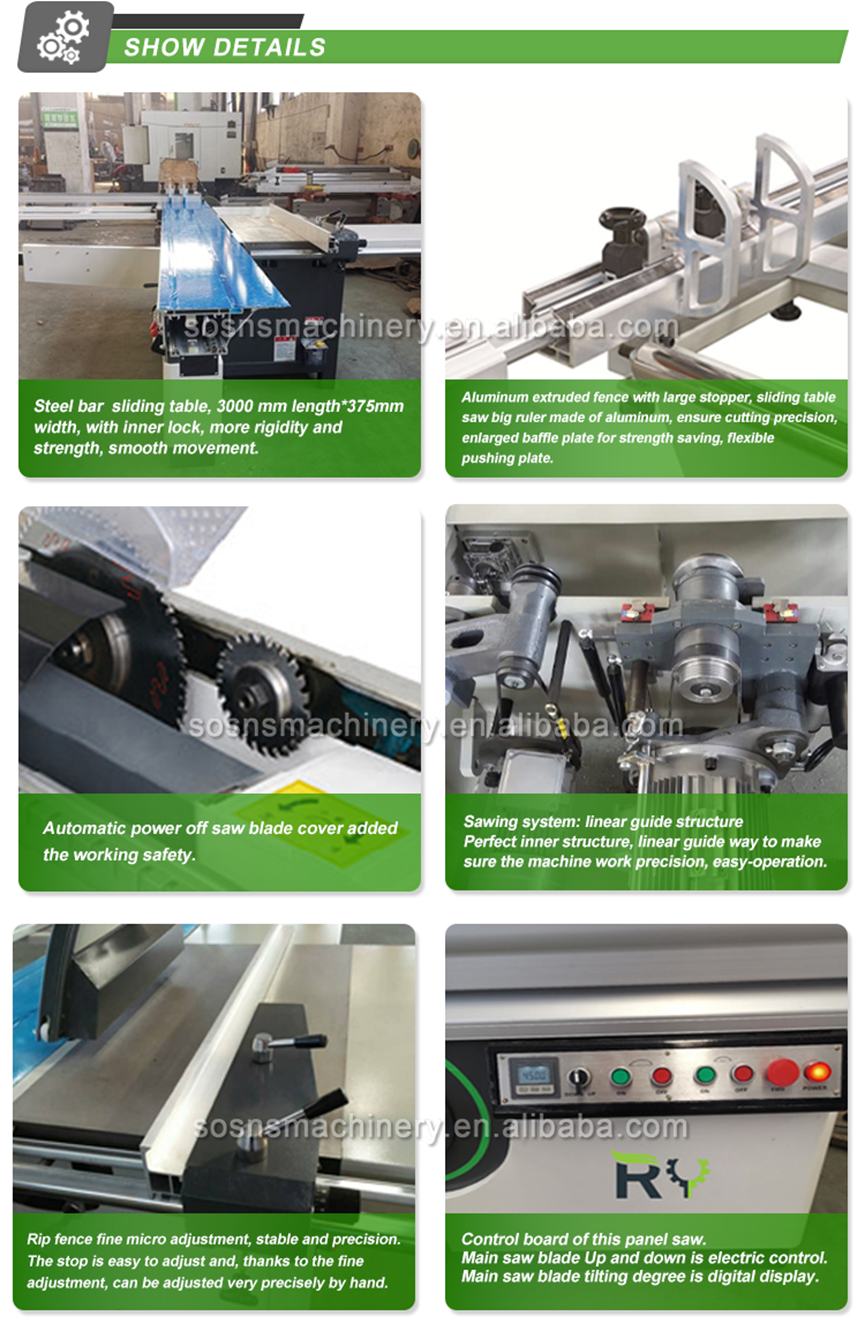

An overview of the panel saw machine key features.
-- Rip fence
The rip fence, precise and smooth running. Cutting width: 1,250 mm.
-- Manual tilt adjustment
Manually adjustable by handwheel, the tilting angle is shown on a scale. Tilting angle is from 0 -45°.
-- Manual height adjustment
Manually by handwheel.
-- Sawing unit system
Engine main saw power: 5.5 kW (7.5 HP)
Rotational speed: 4500/6000 rpm.
-- Scoring unit system
Separate scoring saw motor with 1.1 kW.
Rotational speed: 7000/8000 rpm.
-- Cutting height capacity
75mm at 90 degree using 300mm saw blade.
120mm can be selected if change to 400mm saw blade.
Panel saw machine for European agent:
Product descriptions from the supplier
Overview
Video Description
Dimension of sliding table | 1600x375mm |
Gross cut capacity | 1600mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(250-400mm) |
Height of cut (300mm) | 80mm |
Height of cut with saw blade 300mm at 45 degree | 60mm |
Speed of main saw spindle | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0°- 45° |
Main motor | 220v/380v/415v, 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000rpm |
Scoring saw diameter | 20mm |
Scoring motor | 1.1kw |
Gross weight | 750kg |
Overall dimension | 1750*3150*900mm |
Packing size of machine body(L*W*H) | 1520*1150*1050mm |
packing size of sliding table(L*W*H) | 1750*480*320mm |
Why choose us?
• We take pride in our expertise in producing Table Panel Saw products and providing specialized services.
• The trust responsibility given by customers promotes our continuous innovation. Our strong technical strength and perfect quality system provide reliable guarantee for the steady improvement of product quality.
• We offer a wide range of Table Panel Saw products to suit different customer needs and preferences.
• We take the premise of abiding by socialist morality and morality, unite all employees and establish industry reputation.
• We are a reliable supplier of Table Panel Saw products, offering fast and efficient delivery times.
• Our company always adhere to 'customer satisfaction is our eternal pursuit'. Reliable customer service representatives and professional sales personnel will provide comprehensive solutions for customers' purchasing work.
• Our Table Panel Saw products are made with precision and attention to detail for maximum performance.
• From the beginning of assembling individual parts to presenting a truly complete product, we are committed to creating Panel Saw Machine that is generous and durable.
• We have a team of dedicated sales representatives who can provide expert advice and assistance with all Table Panel Saw product inquiries.
• Our Panel Saw Machine has undergone rigorous performance testing and repeated field testing, which ensures its good quality and stable performance.
Relevant information
undefined

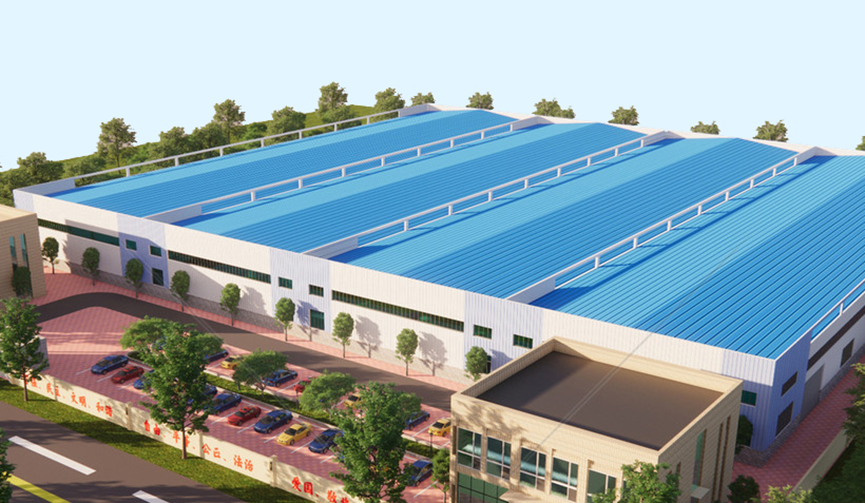

Located in the beautiful coastal city-Qingdao.Qingdao SOSN Machinery Co., Ltd is a professional manufacturer of woodworking machinery, and have been in this line for more than 30 years.
