Wood Cutting Panel Saw Machine
wood cutting panel saw machine price
3000mm wood cutting panel saw machine
factory wood cutting panel saw machine
Wood Cutting Panel Saw Machine
Precise. Powerful. Potential -- MJ61-30TDZ wood cutting panel saw machine.
• Saw motor: 5.5kw+1.1kw
• Maximum cutting length: 3000 mm
• Main saw blade electric up&down
Relying on quality is always a best choice!
Description
Features:
This wood cutting panel saw machine equips with European heavy sliding table.
widened sliding table, gantry milling, thickened body;
Pure copper motor, Schneider Electric, Japanese bearing;
Big saw blade one-button lift, rip fence fine-micro, aluminum alloy core-pulling swing stick.
Technical parameter:
Dimension of sliding table | 3000*375mm |
Gross cut capacity | 3000mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(250-350mm) |
Height of cut(300mm) | 90mm |
Height of cut with saw blade 300mm at 45° | 60mm |
Tilting saw blade | 0-45° |
Main motor | 5.5kw |
Scoring motor | 1.1kw |
Speed of scoring saw blade | 7000-8000rpm |
Scoring saw blade diameter | 120mm |
Main spindle diameter | 30mm |
Scoring spindle diameter | 20mm |
Gross weight | 850kg |
Overall dimension | 2950*3150*900mm |
Products description:

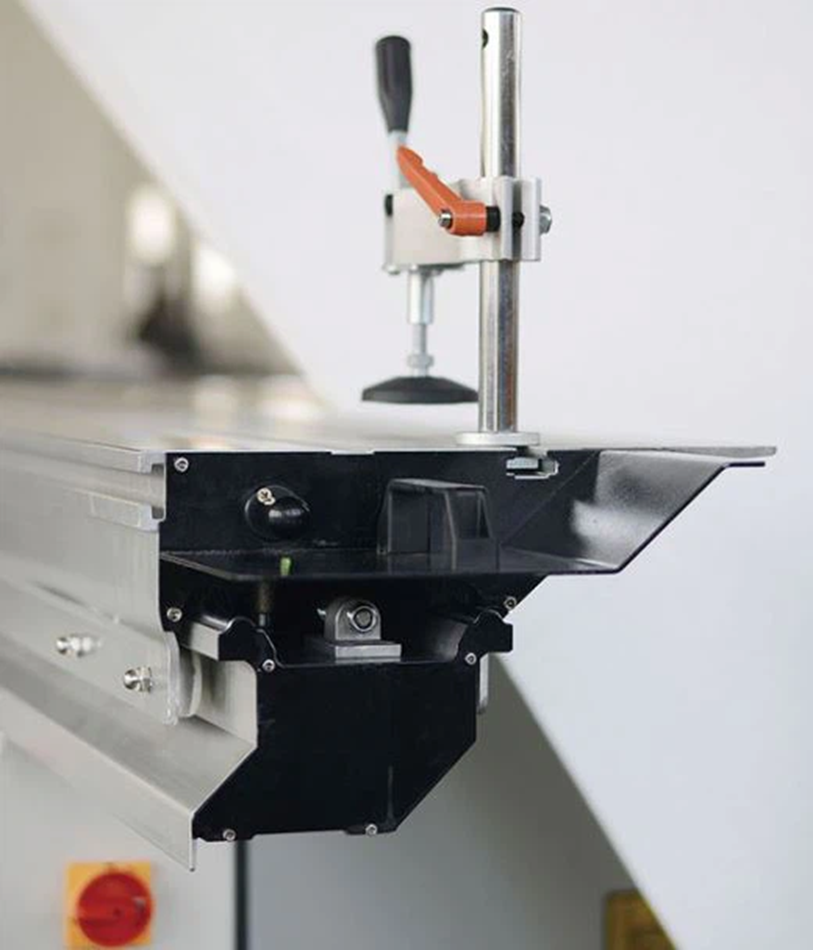

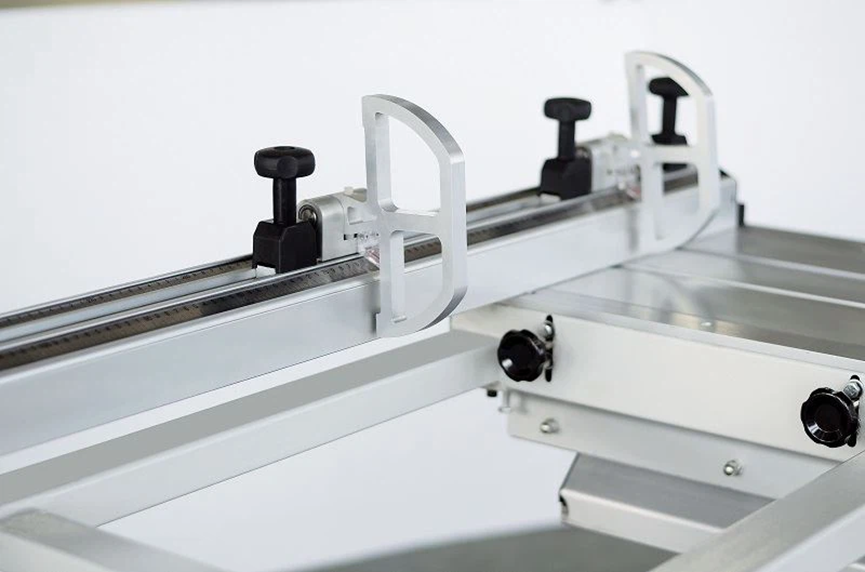

1. Aluminum extruded fence with large stopper, sliding table saw big ruler made of aluminum, ensure cutting precision, enlarged baffle plate for strength saving, flexible pushing plate.
2. The degree of inclination of the big saw blade is a digital show, very convenient for the operator, also with high accuracy.

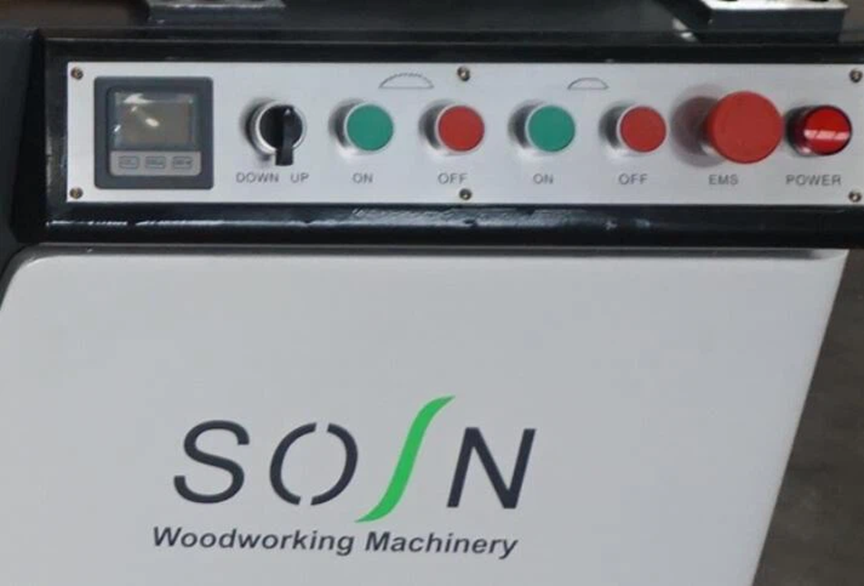

European quality button
3. Steel bar Altendorf type sliding table, 3200 mm length*410mm width, with inner lock, more rigidity and strength, smooth movement.

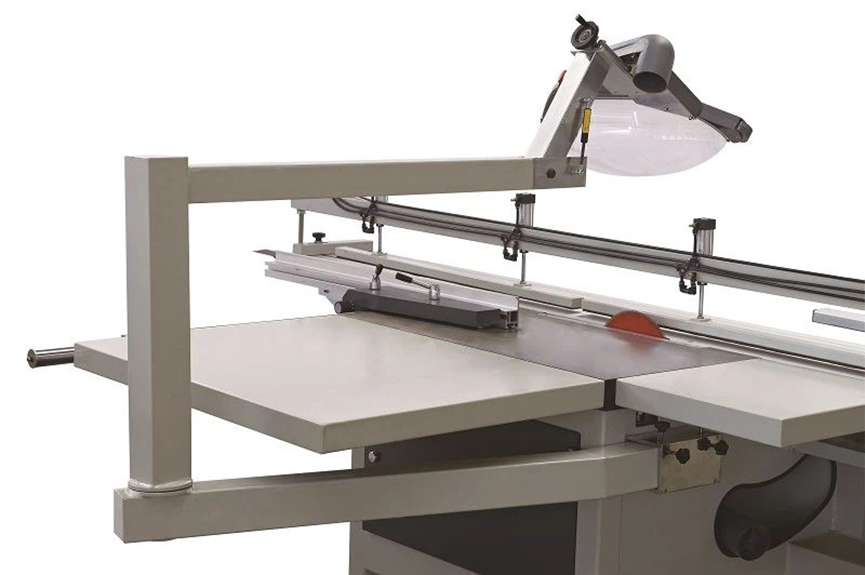

4. European type big dust hood can be added on sliding panel saw.

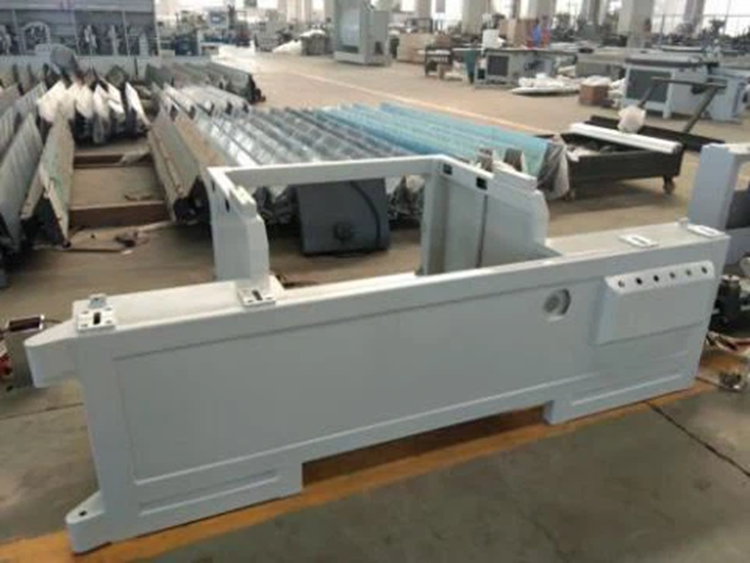

5. Thick metal sheet, high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.

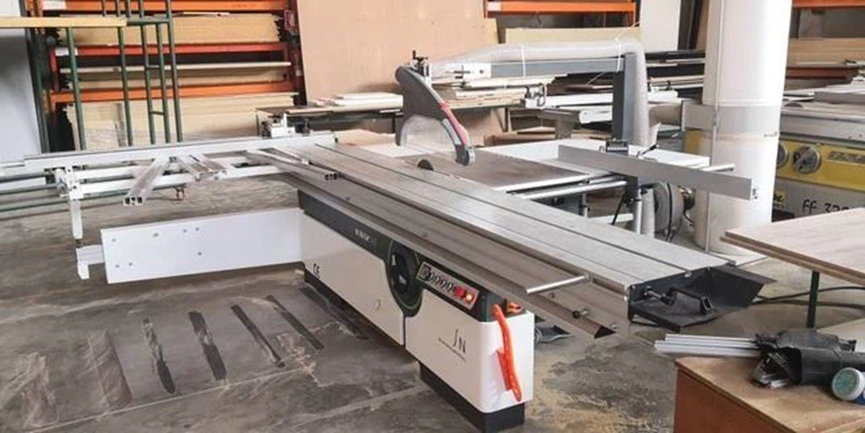

Sosn wood cutting panel saw machine in customer’s factory:
As with our wood cutting panel saw machine, we also place the highest demands on our service. No matter what your concern is. Our service team is at your side quickly, competently and reliably. Hand on it!
Relevant information
undefined
Located in the beautiful coastal city-Qingdao.Qingdao SOSN Machinery Co., Ltd is a professional manufacturer of woodworking machinery, and have been in this line for more than 30 years.
