Details
Cnc Panel Saw
CNC panel saw is all automatic except scoring saw and sliding table.
Description
Features:
1. Automatic control for saw blade up and down.
2. Main saw blade tiliting degree is controlled automatically.
3. Automatic rip fence
4. Cnc control for big guide ruler
5. Linear guide inner structure, stable and precision.
6. Altendorf type sliding table, 3200*410mm.
7. European dust cover, Freud saw blade
Technical parameter:
Dimension of sliding table | 3200*410mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300(250-400)mm |
Height of cut (300mm) | 80mm |
Height of cut with saw blade 300mm at 45 degree | 60mm |
Speed of main saw spindle | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 7000-8000rpm/min |
Scoring spindle diameter | 20mm |
Scoring motor | 1.1kw |
Gross weight (with wooden package) | 950kg |
Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
Packing size of the sliding table(L*W*H) | 3350*480*320mm |

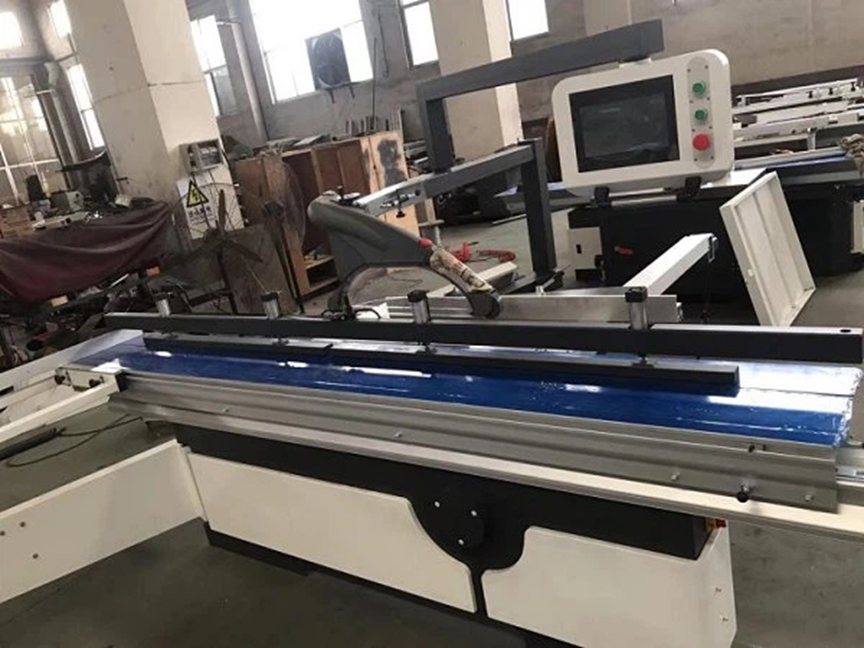

| Automatic degree setting the height of the saw blade, the cutting angle, the position of the ruler, and the position of the ruler are accurately displayed on the LED panel. |

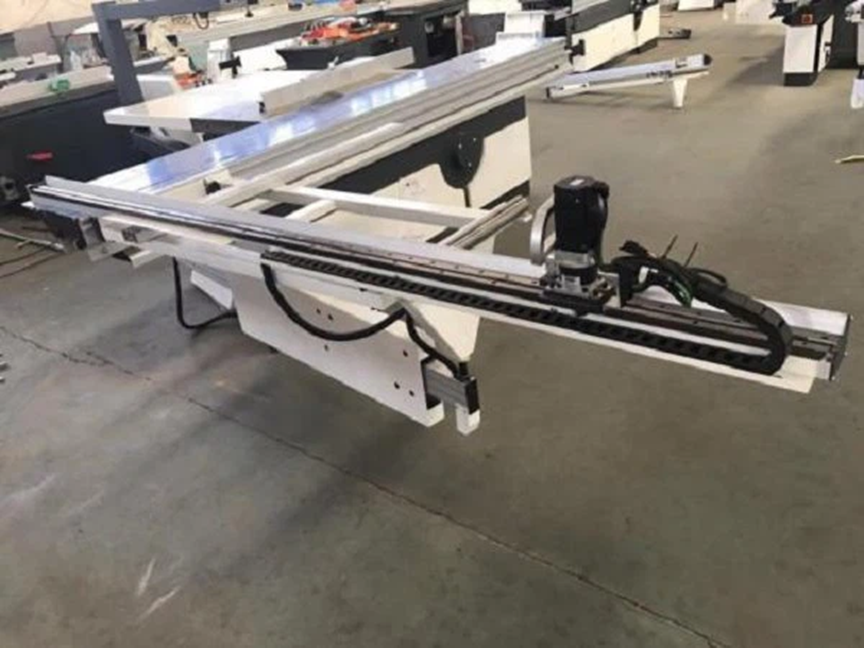

| Automatic rip fence |

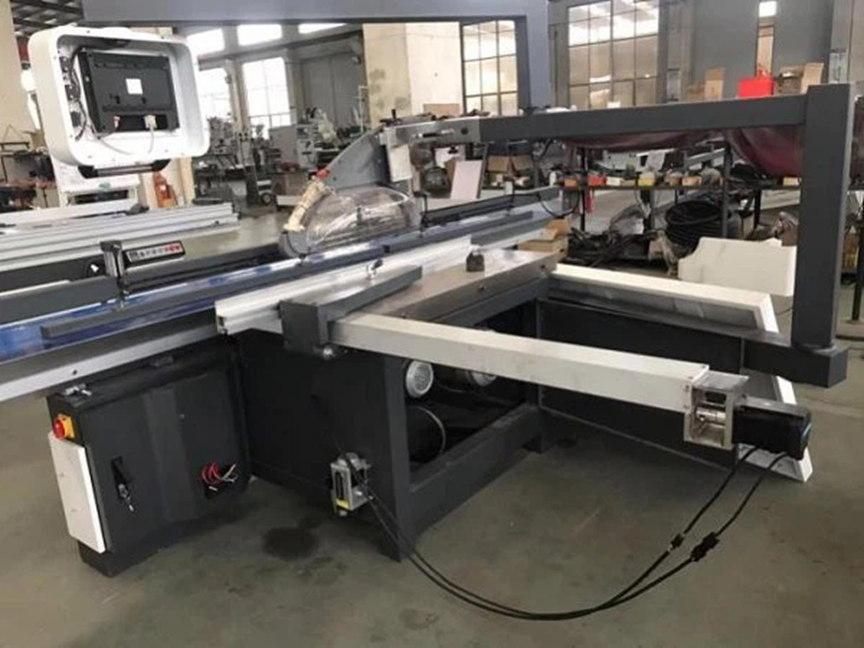

| cnc control position ruler |

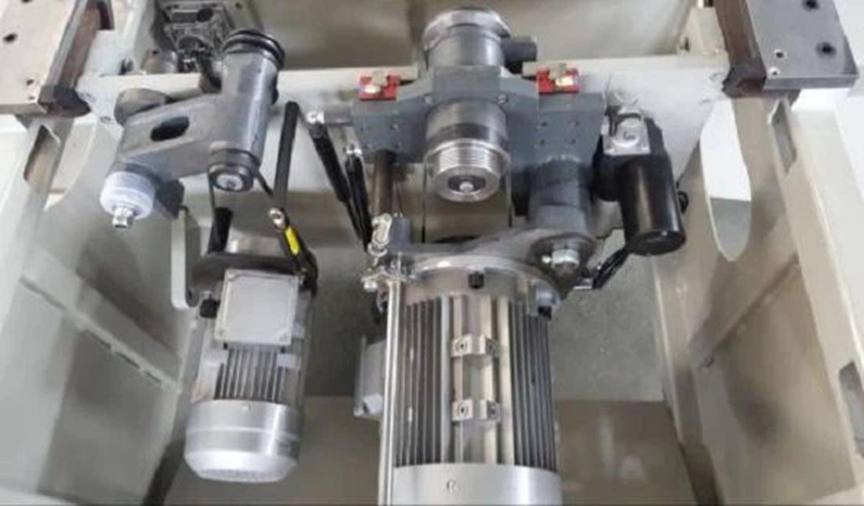

| Aluminum shell copper core 5.5kw+1.1kw motor, fast heat dissipation to ensure long-term processing and operation, equipped with linear guide electric lifting structure, making it stable and improving cutting accuracy, electric lifting structure improves production efficiency. |
| This Cnc panel saw equips with European dust hood and pneumatic press device. |

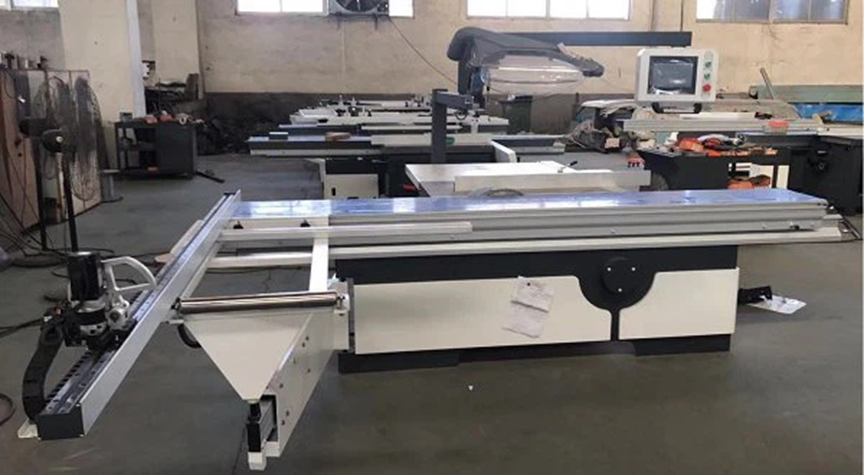

Cnc panel saw in factory:
This sawing machine is 100% automatically of cross cut ruler and rip fence, it's ideal choice for updatng your manual panel saw, choose it, you can get time saving and labour saving.
We are manufacturer of woodworking machinery, can support you all life machine service.
Main products: CNC router, Automatic Edgebander Machine, Drilling machine, Dust collectors, Vacuum press machine.
