Sliding Table Panel Saw

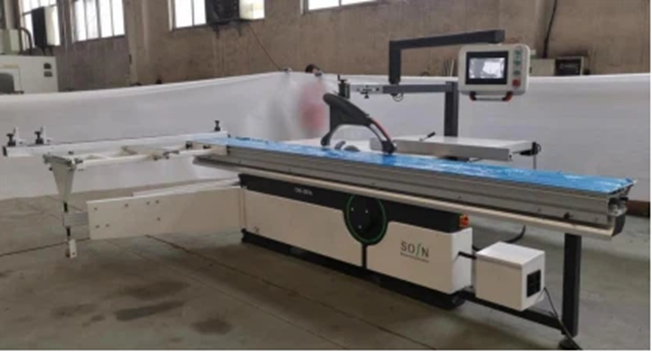

3800mm length automatic cnc sliding table panel saw Rip fence cnc controlled by servo motor
sliding table panel saw
CNC-32TA
3800mm capacity -- The essence of technology and design.
Key function:
The CNC rip fence applies the high-precision five-point recirculating ball spindle system needs little maintenance and, along with the motor, is well protected by its integration into the aluminium profile.
Technical details:
Sliding table panel saw worktable | 3800*410mm |
Capacity of cross cut ruler | 3800mm |
Capacity of rip fence | 1250mm |
Sawing disc capacity | 300(250-400)mm |
Thickness of cutting (300mm) | 75mm |
Thickness of cutting of 300mm at 45 degree | 55mm |
Main saw disc speed | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main saw unit motor | 5.5kw |
Scoring cutting unit | 120mm |
Scoring disc speed | 7000-8000rpm/min |
Scoring unit spindle | 20mm |
Scoring saw unit motor | 1.1kw |
G.W. | 1200kg |
Packing size | 2200*1150*1100mm 3950*480*320mm |
An overview of the CNC-32TA key features.

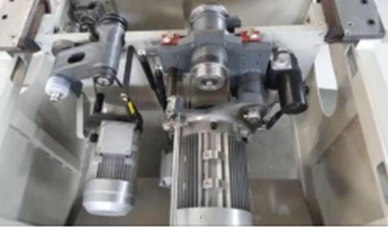

1. Sliding table panel saw cutting system:
Equip with Freud saw blade, adopt linear rail structure,
Motor rating 5.5 kW (7.5 HP)
The bigger motors provide up more torque than conventional electric motors without increasing power consumption.

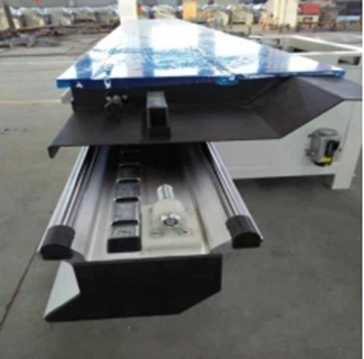

2. European push table, table width 410mm
The guide rail is a plated round rod structure with high positioning accuracy.
Made of high-strength extruded aluminum alloy, with high strength and no deformation; the surface is oxidized, beautiful and wear-resistant.
Additional: CNC crosscut fence
The cross cut ruler, with integral length compensation, makes it easier to perform bevel cuts and mitre cuts precisely in one function. The angle tilting can be adjusted continuously over a range of 49° with a graduated scale.
sliding table panel saw under production:
Qingdao Sosn Machinery is a manufacturer of woodworking machines.
We offer one-step machines solution.
Main products: CNC beam saw, cnc router, edge banding machine, sanding machine, drilling machine, dust collectors etc.
Would like to be in your service.
