Hot Sale Plywood Cutting Wood Vertical Panel Saw Sliding Table Saw Machine Woodworking Price for Mdf Pvc Furniture Cabinet Door
Category：
Details
Technical parameter:
Dimension of sliding table | 3200x410mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300(250-400)mm |
Height of cut (300mm) | 80mm |
Height of cut with saw blade300mm at 45 degree | 60mm |
Speed of main saw spindle | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 7000-8000rpm/min |
Scoring spindle diameter | 20mm |
Scoring motor | 1.1kw |
Gross weight (with wooden package) | 1050kg |
Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
Packing size of the sliding table(L*W*H) | 3950*480*320mm |
Details picture

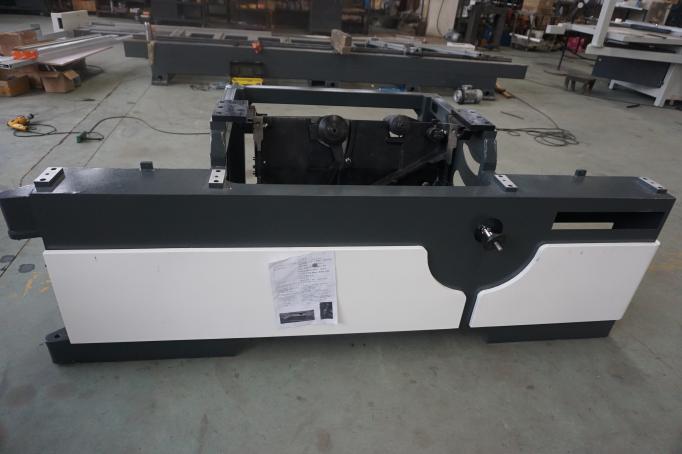

| Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions. |
|

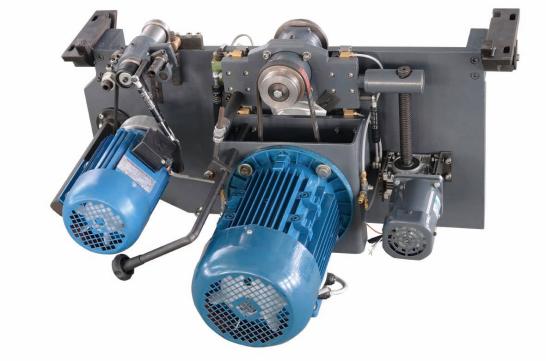

Linear guide structure |
| Automatic rip fence
|

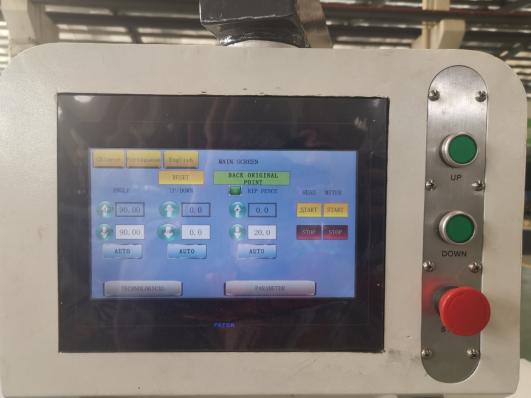

| Automatic degree setting
|
| Digital readout for cross cut fence |

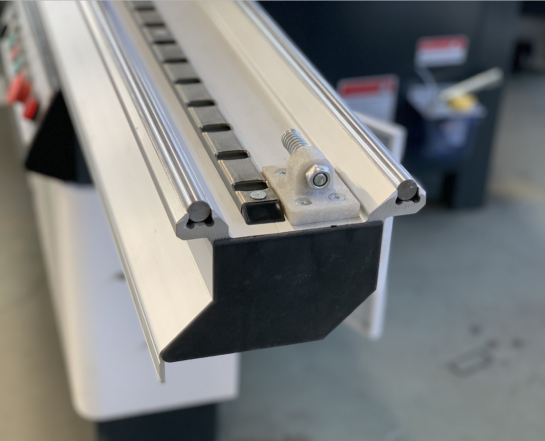

| Steel bar sliding table , with lock for stop in any place, more rigidity and strength, Double column rail with rolling wheel |

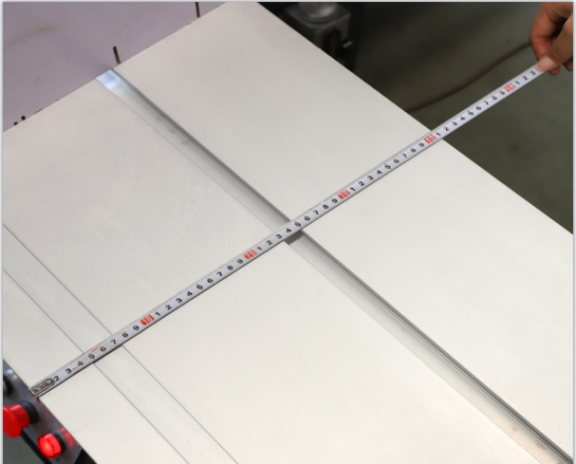

| 3200*410mm width sliding table carriage for stronger support during cutting.
|

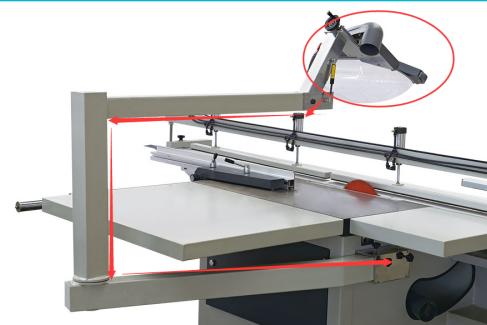

| Europe style dust cover, frame support with Chromium treatment, wearproof and anti-corrosion, extend workpiece life
|

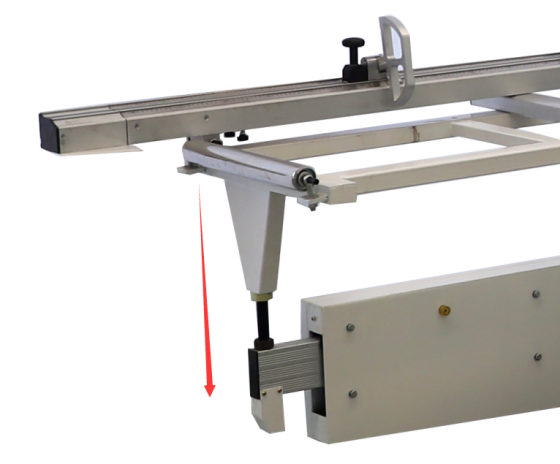

| The outrigger can be easily removed and assembled. A large support roller is employed for smooth loading of panels. |

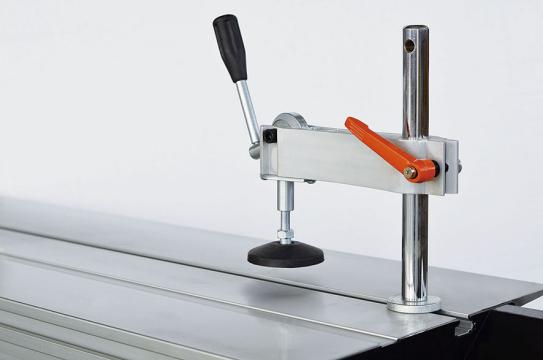

| Manual press feeder fix the small size panel during cutting |

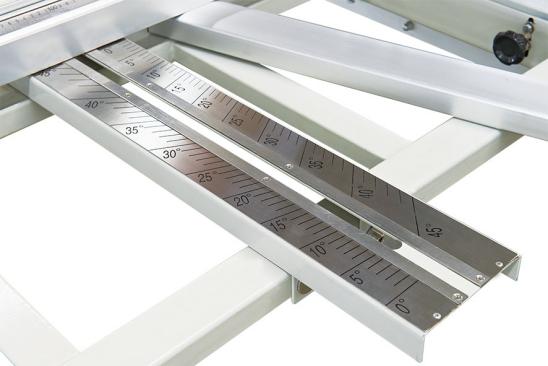

| 45 angle ruler on sliding table, more convenience to cut tilting board |

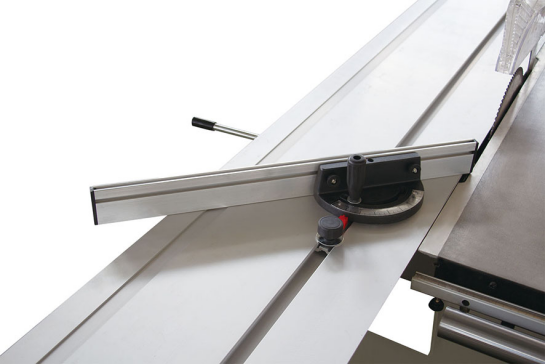

| 45 angle ruler on rigid cross cut fence |
