Automatic Computer Panel Saw
Affordable, efficient and expandable-- DZ2800 automatic computer panel saw.
• Sawing motor power: 18.5kw+2.2kw
• Cutting length: 2800 mm
• Min.cutting size: 35*35mm
providing a much more precise and efficient cutting solution.
Description

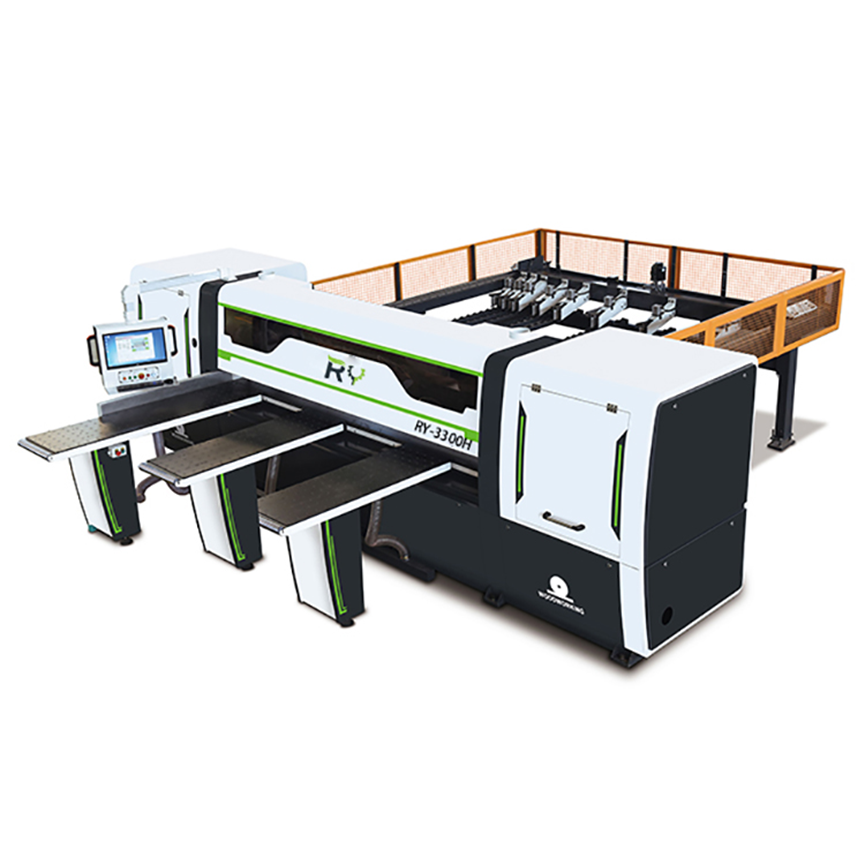

Affordable, efficient and expandable -- RY-3300H CNC Beam Saw Machine
• Sawing motors power: 15kw+2.2kw
• Cutting length: 3200 mm
• Pneumatic gripers: 10 groups
providing a much more precise and efficient cutting process;
capable of high-performance cutting operations in increasingly shorter times.
This CNC Beam Saw provides both woodwork shops and industrial companies high precision finish cuts for all kinds of wood-based panels material.
3200mm cutting capacity, sturdy design and equipped with proven RY technology.
In a brief, it is a computerized panel saw which ideally meets the requirements of enlarging your business!

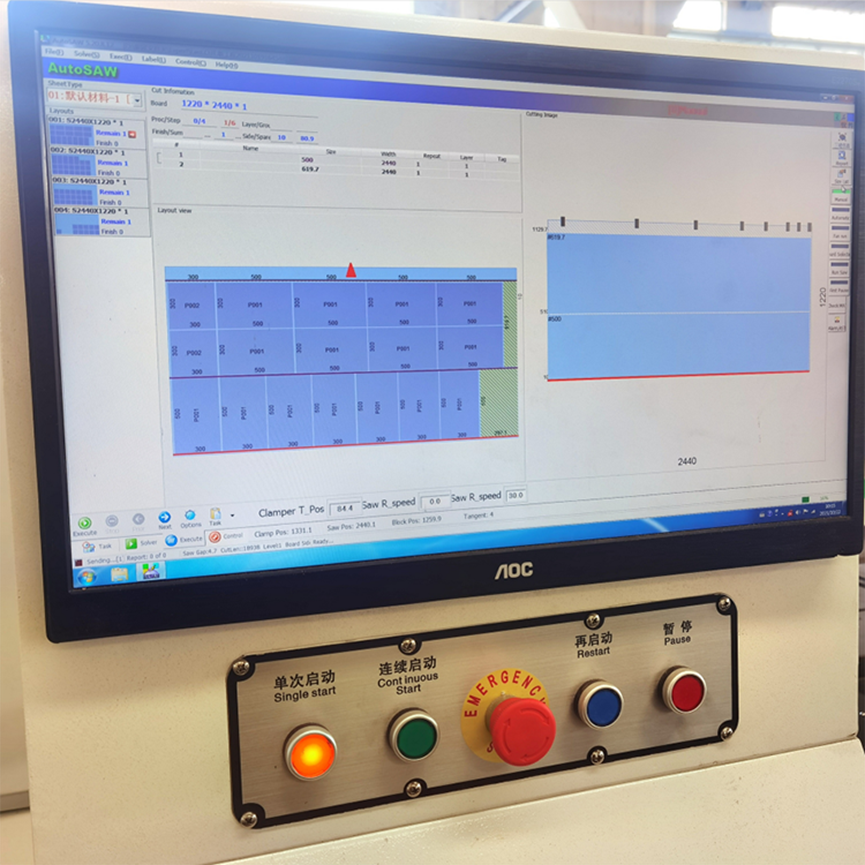

PC control system

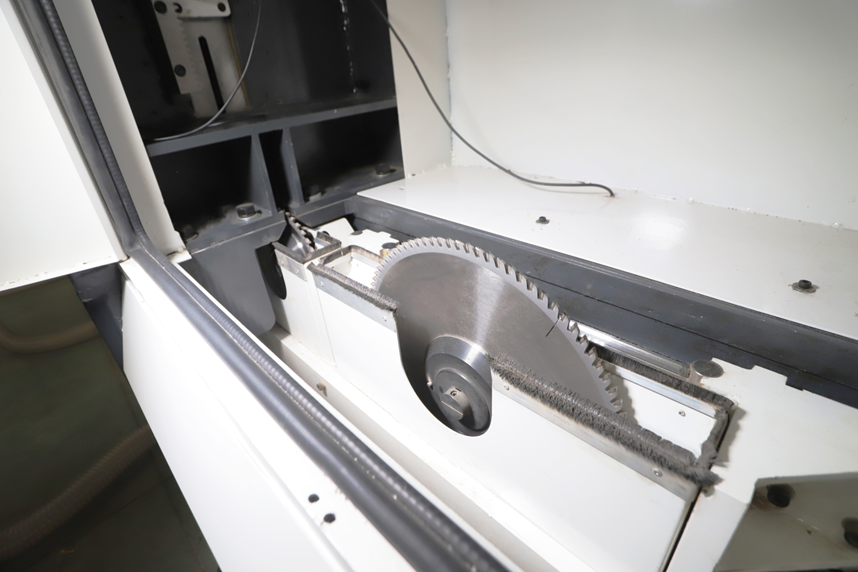

Saw blades

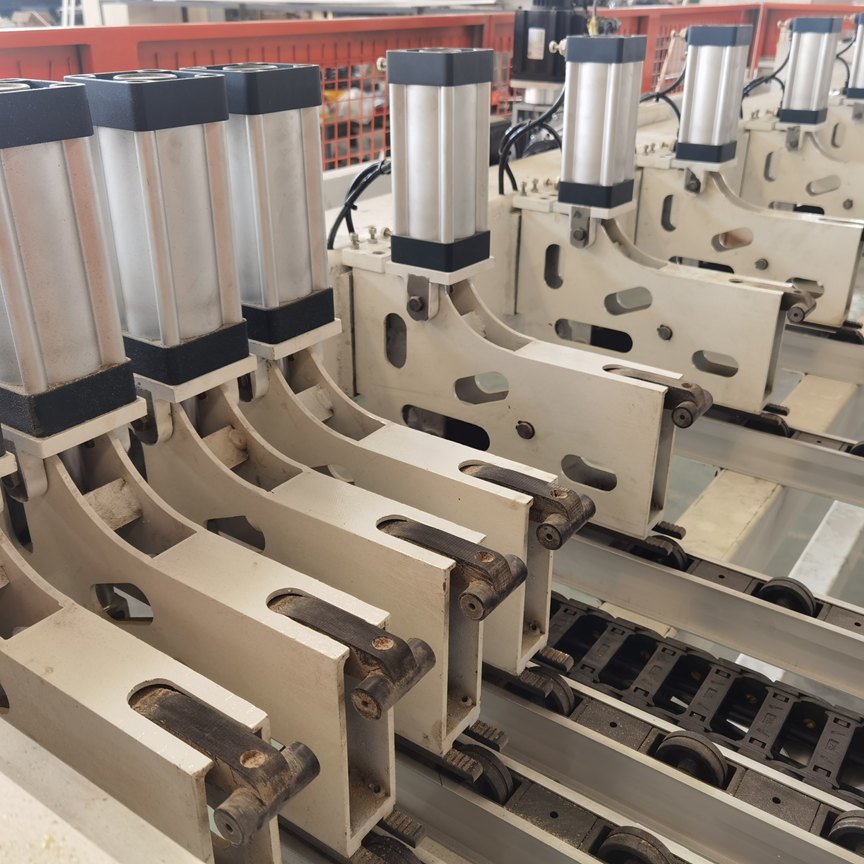

10 sets of clamps

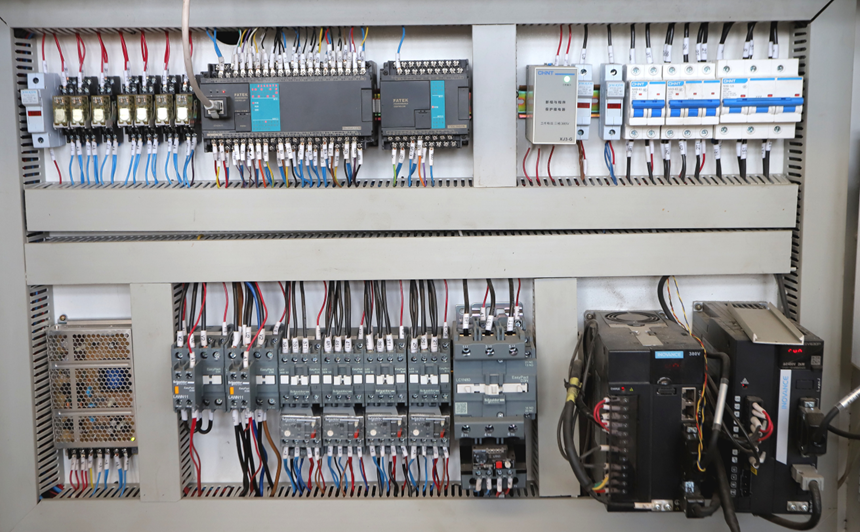

Electrical components

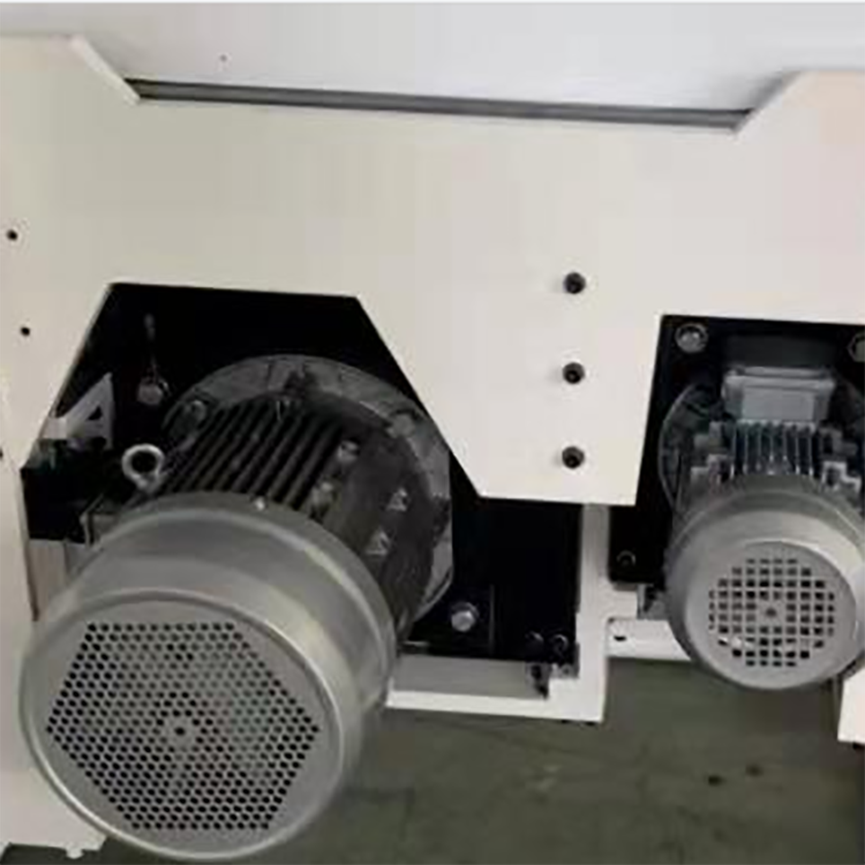

15kw+2.2kw sawing system

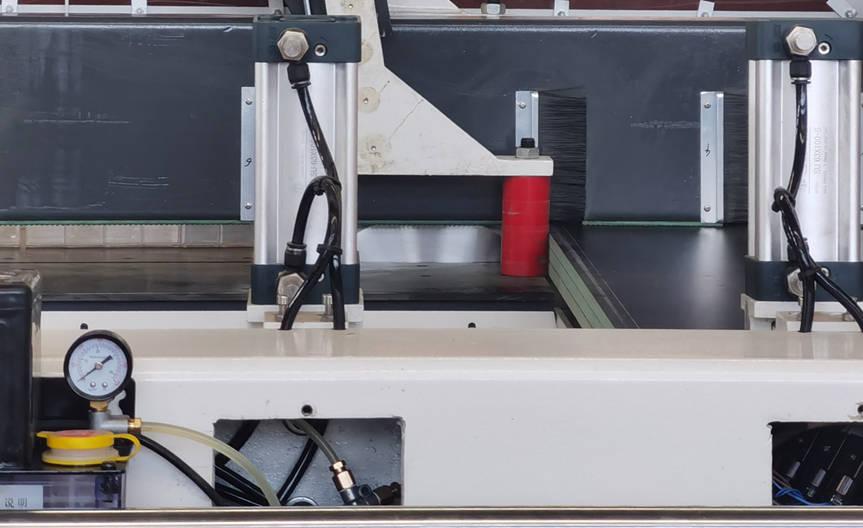

Side aligning device
| Control system | PC with cutting optimization software | |
| Max.cutting length | 3300mm | |
| Max.cutting thickness | 120mm | |
| Min.cutting size | 35*35mm | |
Saw blade system | Main saw blade | Size: Φ450*75mm |
| Speed: 4000r/min | ||
| Scoring saw blade | Size: Φ200*50mm | |
| Speed: 6000r/min | ||
Saw system | Saw carrier forward speed | 100mm |
| Saw carrier backward | 120mm | |
| Sawing motor power | 15kw+2.2kw | |
| Saw carrier driving motor | 1.8kw | |
| Auto feeding system | Pneumatic holding gripers | 10 groups |
| Feeding servo motor | 1.8kw | |
Loading system | Air floating table | 3pcs |
| Table height | 960mm | |
| Floating fan power | 3kw | |
| Working air pressure | 6-7kg/cm² | |
| Net weight | 5800KG | |
| Overall size | 6600*6400*1800mm | |
