Computer Beam Saw Machine.
Large Cutting Capacity Of 3800mm. Sosn computer beam saw machines offer high performance in quality for cut finishing and working speed in order to satisfy the production requirements of the furniture companies.
Description
Introduction
Computer Beam Saw Machine. Large Cutting Capacity Of 3800mm is a kind of processing equipment suitable for the woodworking workshop of standardized high-capacity processing type, which can be used to process wood-based panels, aluminum panels, MDF, MDF, ABS, PVC, solid wood, and other materials. Advanced mechanical design, powerful motor structure, and fully automatic control ensure its high production capacity, flexibility, and processing precision.
Features
The base of the machine is made of high-pressure laminate, which is stable and wear-resistant and can avoid scratches on the panel surface.
The connection of the rack and pinion drive system can ensure smooth movement and fast machining.
You can automatically adjust the sawing stroke according to different processing lengths to reduce the stroke time and improve work efficiency.
The main saw and grooving saw are independently lifted up and down, with higher flexibility.
Data
Product Name | Computer Beam Saw Machine. Large Cutting Capacity Of 3800mm |
Model number | DZ-3800 |
Max.cutting length | 3800mm |
Max.cutting height | 120mm |
Min.cutting size | 35*35mm |
Main saw blade motor power | 15kw |
Main saw blade diameter | 450mm |
Main spindle diameter | 75mm |
Pusher system drive motor | 1.8kw |
High pressure blower motor | 3kw |
Saw carriage drive motor | 1.8kw |
Clamp number | 11 groups |
Floating tables | 4 |
Machine size | 7100*6900*1800mm |
Weight | 6200kg |
Details

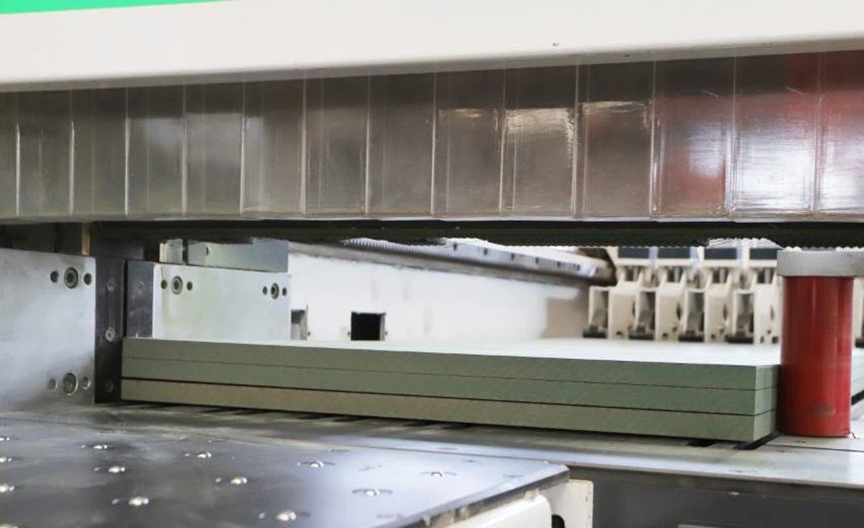

1. Automatic Side aligner
Linear guide roller makes the machine run stable.

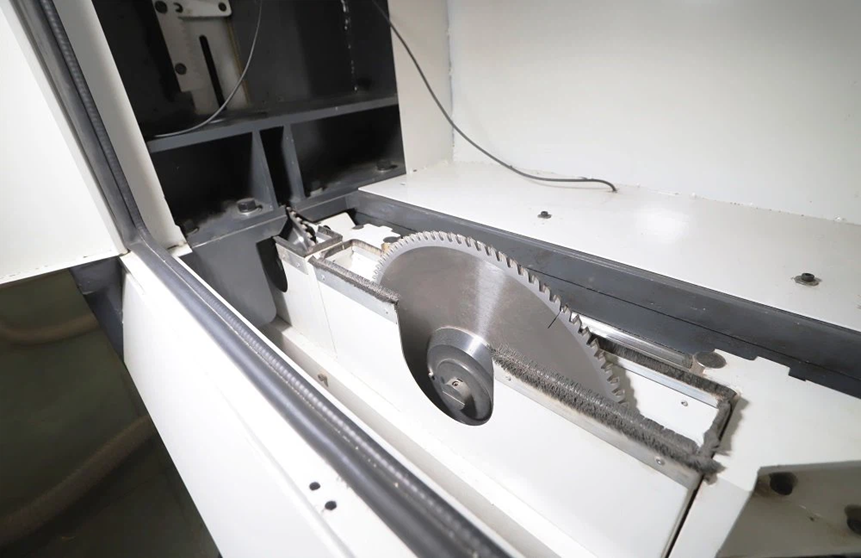

2. Saw blade system
Special saw spindle make it with low noisy, high precision.
3. Saw carrier system
servo control and rack drive
This beam saw has intelligent control system which is also greatly improves the operation's convenience and machining accuracy. This is a product very suitable for furniture manufacturers.
Relevant information
undefined
Located in the beautiful coastal city-Qingdao.Qingdao SOSN Machinery Co., Ltd is a professional manufacturer of woodworking machinery, and have been in this line for more than 30 years.
