Factory Automatic Wood Cutting Cnc Panel Woodworking Computer Beam Saw
Category：
Details

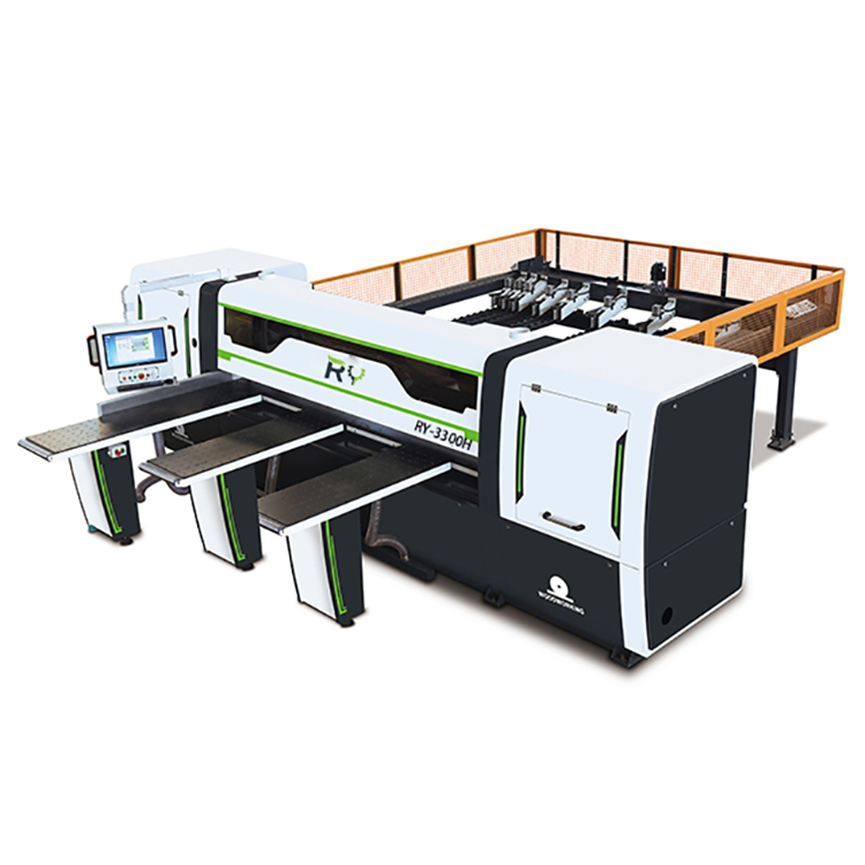

Factory Automatic Wood Cutting Cnc Panel Woodworking Computer Beam Saw
The high-quality rack and pinion transmission system ensures fast work and smooth movement. Saw carriage with rack and pinion drive 1.8kw, main saw unit 15kw, separate motor for scoring unit 2.2kw.
The high-quality rack and pinion transmission system ensures fast work and smooth movement.
Saw carriage with rack and pinion drive 1.8kw, main saw unit 15kw, separate motor for scoring unit 2.2kw.
Side aligning device
Control system | PC with cutting optimization software | |
Max.cutting length | 3300mm | |
Max.cutting thickness | 120mm | |
Min.cutting size | 35*35mm | |
Saw blade system | Main saw blade | Size: Φ450*75mm |
Speed: 4000r/min | ||
Scoring saw blade | Size: Φ200*50mm | |
Speed: 6000r/min | ||
Saw system | Saw carrier forward speed | 100mm |
Saw carrier backward | 120mm | |
Sawing motor power | 15kw+2.2kw | |
Saw carrier driving motor | 1.8kw | |
Auto feeding system | Pneumatic holding gripers | 10 groups |
Feeding servo motor | 1.8kw | |
Loading system | Air floating table | 3pcs |
Table height | 960mm | |
Floating fan power | 3kw | |
Working air pressure | 6-7kg/cm² | |
Net weight | 5800KG | |
Overall size | 6600*6400*1800mm | |
Choose it! Makes your work easier than ever for your business to ease the way into the efficiency manufacturing world
